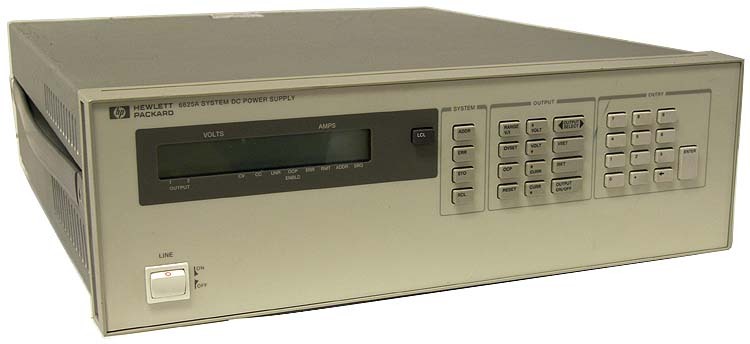

Agilent HP System DC Power Supply Model 6625A, Dual Outputs, with HP-IB GPIB Interface Output-2: 0-16V / 0-2A or 0-50V / 0-1A Description: The Agilent 6625A high performance DC Power Supply offers spec and accuracy for test optimization. The precision multiple output, 25W - 50W GPIB 6625A, provides fast, low-noise outputs; dual-range, precision low current measurement; built-in measurements and advanced programmable features; and protection features to ensure DUT safety. The Agilent 50W, dual-output 6625A is a versatile solution that helps improve system accuracy and reduces test time in a 3U high package Features and specifications of the HP Agilent 6625A include: Output Ratings (1 output each) Low-range volts, amps 25W: 0 to 7 V, 0 to 15 mA Low-range volts, amps 50W: 0 to 16 V, 0 to 200 mA High range volts, amps 25W: 0 to 50 V, 0 to 500 mA 0 High range volts, amps 50W: 0 to 50 V, 0 to 1 A or, 0 to 16 V, 0 to 2 A Programming Accuracy (1 output each) Voltage 25W: 1.5 mV + 0.016% (low), 10 mV + 0.016% (high) Voltage 50W: 53 mV + 0.016% (low), 10 mV + 0.016% (high) Current 25W: 15 A + 0.04% (low), 100 A + 0.04% (high) Current 50W: 185 A + 0.04% (low), 500 A + 0.04% (high) Ripple & Noise (1 output each) Readback Accuracy (1 output each) Voltage 25W: 0.016% + 2 mV (low), 0.016% + 10 mV (high) Voltage 50W: 0.016% + 3.5 mV (low), 0.016% + 10 mV (high) +/-Current 25W: 0.03% + 15 A (low), 0.03% + 130 A (high) +/-Current 50W: 0.04% + 250 A (low), 0.04% + 550 A (high) (Agilent hp 6625A precision dc power supply / free ship was posted and is owned by: Aaron Fischer) |
Aaronfischer@chicagopartsnetwork.com (Aaron Fischer) for more information.
