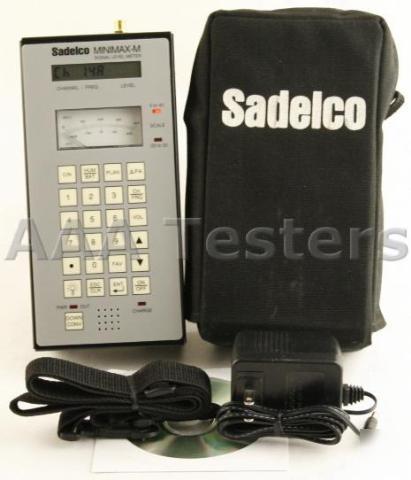

* Sadelco MiniMax M800 Signal Level CATV Meter * Carrying Strap Soft Carrying Case Sadelco MiniMax M800 Signal Level CATV Meter 18V Power for Downconverters * Accurate Under All Conditions Internal White Noise Generator. Guarantees + 1 dB accuracy, + 0.5 typical. Fast Digital Tuning - Auto Ranging - Digital Display - Favorite Channels Sealed All-Weather Keypad - Metal Housing - Padded Nylon Bag - New Neverbreak "F" connector Saves Battery Power and Increases Time between Charges EIA (NTSC), HRC, IRC, AIR (VHF, UHF, FM), MMDS (PAL and Custom Channel Plans available on request.) FM Selectivity Will distinguish 2 FM signals of similar amplitude 300 Khz apart -20 to +40 dBmV (+40 to +100 dBuV) Each measurement computer corrected for level, attenuator setting and temperature 0.25 dB 4.5 - 864 MHz white noise source Indicates channel, frequency and signal level in dBmV (switchable to dBuV) Indicates real time signal level for easy antenna orientation, 1.5 dB 75 ohm, user replaceable F81 connector, BNC available on request. Built-in battery provides switchable 18V at F connector for powering downconverters > 50 dB with external preselector 0.5 - 5%, 0.3%, detects all hum up to 600 HZ Automatically calculates and displays difference between picture and audio levels of same channel Adjustable volume, waterproof mylar speaker Switchable lights for both LCD and Microammeter Shows battery voltage and elapsed time Built-in NiCads provide >16 hrs of normal intermittent use User adjustable, 5 min, 10 min or continuous Measures average power of QAM signals 4.5 lbs (2Kg), including case and batteries (Sadelco minimax M800 signal level catv meter mini max was posted and is owned by: Dave Wiley) |
