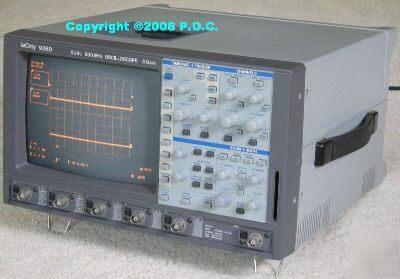

LECROY 9360 OSCILLOSCOPE 600MHz Dual 5Gs/S WITH 2x PP006 PROBES THIS HAS DUAL 5Gs/S DIGITIZERS !!!!!! Includes Two PP006 Probes 500MHz 10:1 with accessories and manual the probes are in like-new condition the CRT is clear, sharp and crisp With Hardware options: GPIB, R232, CLBZ, FD01, CENT, CPU3, I2C With Software Options: WP01, WP02, CKIO Includes Floppy Drive, Parallel, and IEEE488 options Powers-ON, Passes Self-Test, all controls are smooth and responsive This unit has been checked out and is in good operating condition. Very Good cosmetic condition as can be seen in the photos LeCroy 9360 600 MHz Fast Digitizing Oscilloscope Specifications: Simultaneous Maximum Sampling Rate/ch 5 GSa/s One ch. only max. sampling rate 5 GSa/s Max. Single Shot bandwidth 600 MHz Max. Record Length 25000 pt/sec Min. Vertical Sensitivity 2 mV/div Maximum Vertical Sensitivity 5 V/div Input Impedance (alternate) 50 Ohm Maximum Input Voltage 250 Vrms Maximum Input#2 (for Impedance #2) 5 Vrms Main time base - lowest 1 ns/div Main time base - highest 1000 s/div Trigger Source External,Internal Trigger Modes Auto,Drop,Normal,Pulse,Single,State,Stop Display modes Normal,Persistence,X/Y (Lecroy 9360 oscilloscope 600MHZ dual 5GS/s & 2X PP006 was posted and is owned by: Raymond Cantrell) |
R-Cantrell@chicagopartsnetwork.com (Raymond Cantrell) for more information.
