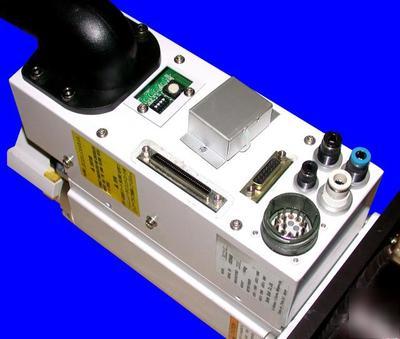

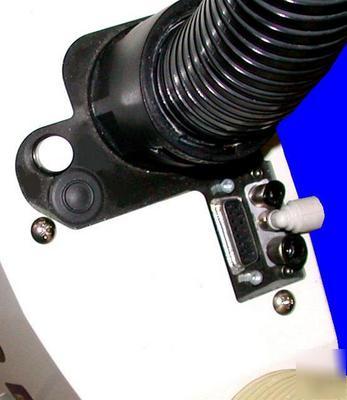

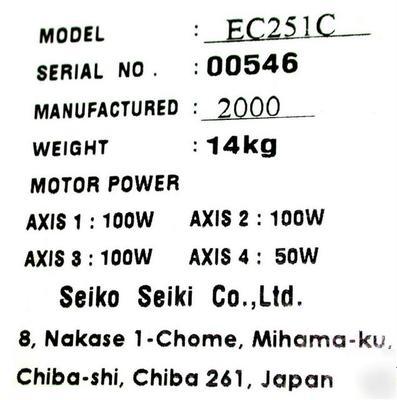

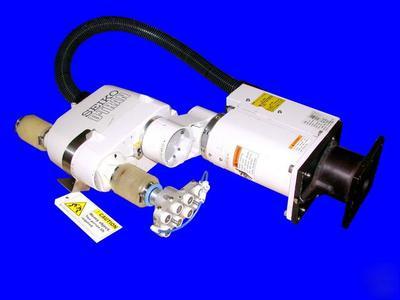

VERY NICE SEIKO SEIKI EC SERIES SCARA ROBOT EC251C00546 Retail cost of more than $14,995.00. The EC251S Robot is a four axis unit with AC servo motors for reduced maintenance and harmonic drives for increased speed and reliability. Configuration - SCARA 4 Axis AC Servo Cycle Time(1" x 12" x 1" and back) - 0.43 seconds Moment of Inertia (U Axis 5Kg Payload) - 0.01 Kg*m2 User Lines - 15 Electric, 3 Pneumatic, Hollow Quill Clean Rating - Class 10 (EC251C) 0.13um particle size The EC251S has a horizontal reach of 250mm (hence the name EC251S) and a Z Axis vertical stroke of 120mm. The EC251S robot also has a standard (1" x 12" x 1" and back) cycle time of 0.43 seconds and a repeatability of 0.010mm http://www.robots.epson.com/products/ecrbts.htm#EC250Spec (Very nice seiko seiki ec series scara robot EC251C00546 was posted and is owned by: Kellie Morales) |
kelliemorales@chicagopartsnetwork.com (Kellie Morales) for more information.
