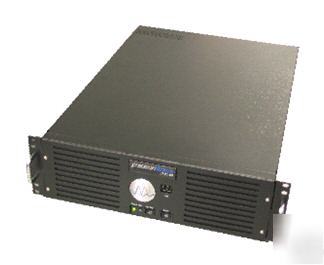

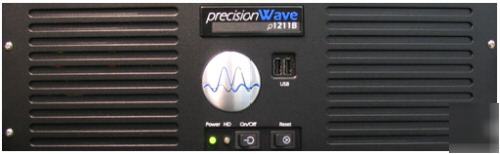

The precisionWave p1211B is an economical focused performance, modulated RF signal generator covering the primary cellular bands of 800 MHz – 1000 MHz and 1700 MHz – 2200 MHz. The instrument has a wide power output range, -100 dBm to +20 dBm, coupled with excellent phase noise performance, and is an ideal source of very high accuracy EDGE, GSM, IS-95 (CDMA One), NADC, PHS, WCDMA, etc. signals. The p1211B is externally modulated and includes a highly stable 10 MHz internal frequency reference. The source is 19†rack mountable, requiring only 3U (5 ¼â€) of vertical rack space. These features, combined with fully electronic switching and powerful LAN programmability make the p1211B the right choice for high speed, high volume, and high accuracy ATE applications. Please visit http:// /p1211b-32 for more information about this product, and about precisionWave Corporation. You can download a data sheet or free User Manual at our site. 800 MHz-1000 MHz, 1700 MHz-2200MHz Harmonics [CW mode, +13 dBm output] 800-1000 MHz, < -50 dBc (typ); 1700-2200 MHz, < -40 dBc (typ) < -50 dBc at < 10 kHz offset; < -80 dBc at > 10 kHz offset 1 GHz, -90 dBc/Hz at 20 kHz offset (typ) ±0.5 dB for output power > -50 dBm; ±0.75 dB for output power < -50 dBm 2.5 ms to within specified accuracy 20 MHz max. for a total modulated bandwidth of 40 MHz. 133 mm (5.25â€) H, 430 mm (16.94â€) W, 629 mm (24.75â€) D http:// /p1211b-32 (Precisionwave P1211B rf vector signal generator was posted and is owned by: Michelle Hicks) |
mhicks@chicagopartsnetwork.com (Michelle Hicks) for more information.
