Aget dust collector air filter wood & metal grinding


Aget dust collector air filter wood & metal grinding

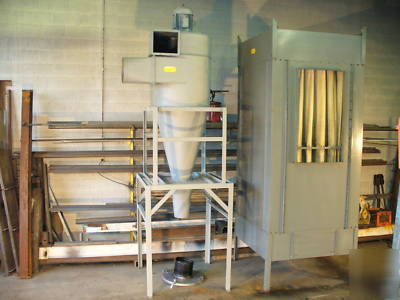

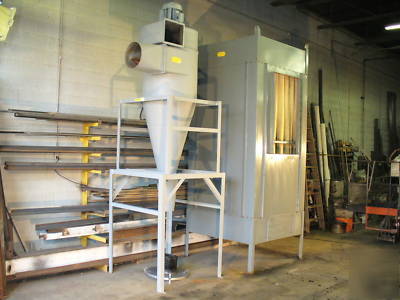

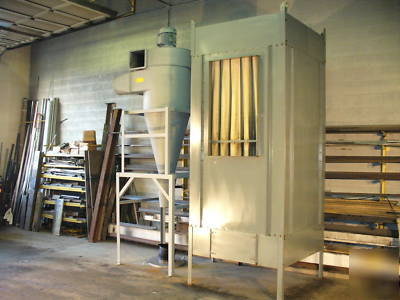

This is a AGET DUSTKOP dust collector, with bag house after-filter.
DUSTKOP (Cyclone) is Model: 60SN70-D1.
FILTERKOP (Baghouse) is Model: FT64 SP.

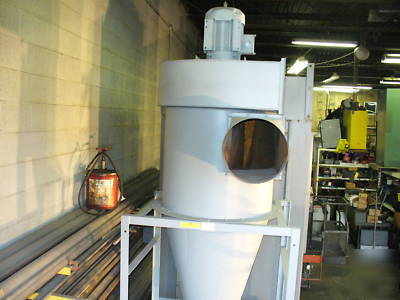

The cyclone has a 13" inlet, outlet is 11" by 12 1/2".
Height: 152". Foot print: 45" square.

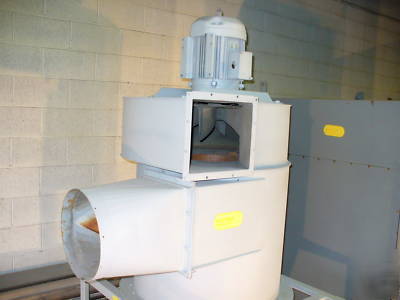

The motor is 10 HP. 3 PH. direct drive. Motor is multi tap, 208 220/440 volt.
Cover/lid with attaching duct and clamps under cyclone fits 55 gal. drum (not included) to collect/hold dust.

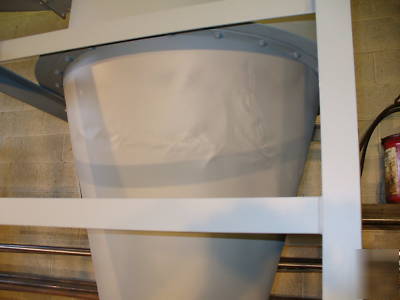

There is an area on the cyclone body that is wavey, something may have bumped that area (took close up picture of area).

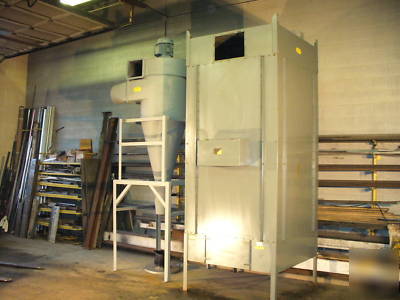

The baghouse is 142" tall, 55" square foot print.
The inlet (at top of baghouse) is 13" by 17 1/2" wide.
Outlet area is 48" by 28" wide.
There is 612 square feet of filter area.
Storage area at bottom of baghouse is 25 sq. ft.

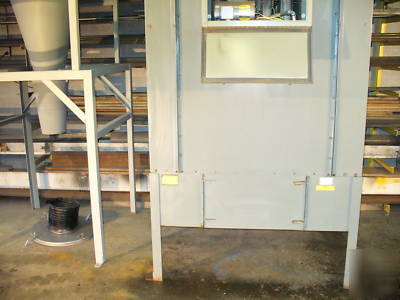

There are 2 clean out doors at the bottom of housing for clean out of dust.

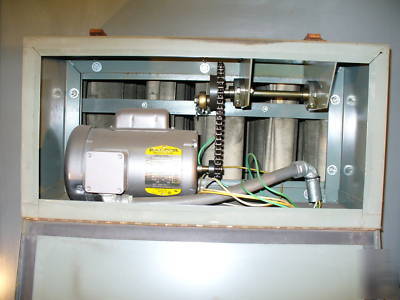

There is a automatic bag shaker motor on side of collector, 1/2 hp. single phase motor. This is wired into the main panel utilizing the timer control for a predetermined shake time.

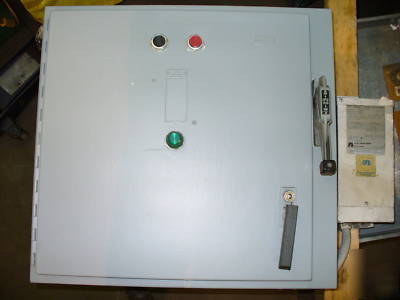

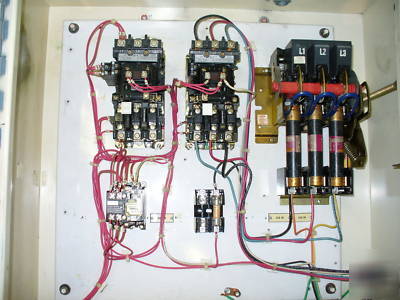

The electric panel has a fused disconnect internal, with 2 motor starters and timer control. There is a transformer wired into the main panel. Start/stop buttons on front of main panel.
The collector works on a cyclonic seperator for initial cleaning. Dust settles in the drum below. The cyclone discharges horizontal into the top plenum area of the baghouse, this collects the fine dust that may pass through the cyclone.
This setup can be installed outside or inside the plant. If mounted outside a panel can be installed over the outlet, then attach ductwork to go back into building for recirculating air back into plant.
Parts and product are available, still being manufactured. Unit is still made here in Michigan.
The last I checked on this setup, the cost was over $16,000.00, plus freight costs.
