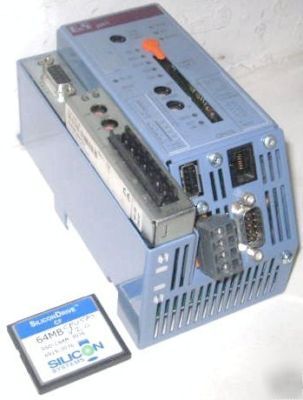

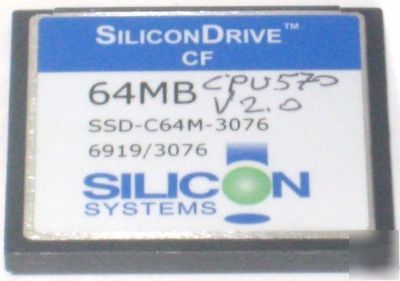

This listing is for a logic control module CPU. * Make: B&R Automation (Bernecker and Rainer) * Part #: 7CP570.60-1 (7CP57060-1) (7CP570.601) (7CP570601) * Series: Silicon-Drive (SiliconDrive) CF * Silicon Part #: SSD-C64M-3076 * Size: 64MB (64 Megabytes) (64 MB) * BR Part #: 5CFRD.0064-03 * BR Revision (Rev.) #: C0 * CPU570 - V. (Version) 2.0 * Description: Logic Control; Processor / CPU The CP570 is a powerful B&R SYSTEM 2003 CPU that requires one slot. It is equipped with an insert slot for aPCI interface modules, a Compact Flash slot for CF memory cards and a floating point unit. An RS232 programming interface, a USB interface and a 10/100 BASE-T ETHERNET interface are available. The aPCI insert slot for interface modules makes it possible to connect this CPU to different bus and network systems. The Compact Flash slot allows the size of the memory to be adjusted to suit the memory requirements of diverse applications. This CPU is especially useful for applications where lower cycle times are required, very large amounts of data must be processed, or for applications using the FPU. Specifications: 2003 CPU, Celeron 300 compatible, 64 MB DRAM, 512 KB SRAM, 24 VDC, 15 W supply, exchangeable application memory: CompactFlash, 1 insert slot for aPCI modules, 1 USB interface, 1 RS232 interface, 1 Ethernet interface 100 Base-T, program memory must be ordered separatly. BR's spec page is located at http:// /downloads_br_productcatalogue/BRP44400000000000000026693/7CP570.60-1-E.pdf (Br b&r 2003 CP570 7CP570.60-1 logic control plc cpu was posted and is owned by: Ola Petersen) |
Ola.Petersen@chicagopartsnetwork.com (Ola Petersen) for more information.
