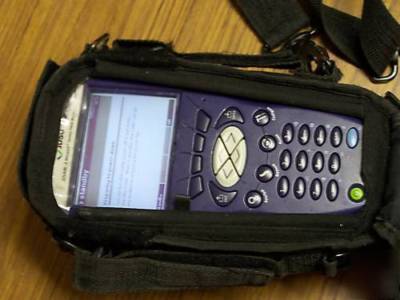

USED....DSAM-1000 case included The DSAM is the industry leading high-speed data installer meter that enables increased numbers of cable modem installs per day. * All-in-one meter includes DOCSIS/EuroDOCSIS service testing and Signal Level Meter (SLM) features. * Increased throughput on DOCSIS 1.1 hardware up to 15 MB downstream * Digital carrier performance with Quick QAM summary of MER/EVM and pre/post FEC BER. * Pre-configured automated tests for digital, analog, and DOCSIS channels. * Increase field efficiency with an optional browser interface, over the DOCSIS RF link to your workforce management system using the IAS-100 Instrument Application Server software. * NEW QAM Ingress (DSAM-2600/3600/6000B 6 MHz units only) * NEW Sweepless Sweep: Standard on the DSAM-6000; Optional on DSAM-3500/3600 * Enhanced Downstream Spectrum (Low Pass Filter, Resolution B/W (30KHz), Dwell time (1-25 ms), 4 MHz 1 GHz. * Errored Seconds (ES) and Severely Errored Seconds (SES): DSAM-2500 model and higher only * HUM for either 60 Hz or 50 Hz Power Grids * DOCSIS, versions 1.0 and 1.1 based. Optional PacketCable VoIP test capability. * 4 to 1000 MHz range; 8 MHz and 6 MHz models. * Weather and shock-resistant enclosure. * Weighs less than 3 lb (1.4 kg). * Analog and digital signal level capabilities. Frequency Range : 4 to 1,000 MHz Accuracy : 10 ppm at 25 C (77 F) Tuning Resolution : - Analog 10 KHz Signal Types : CW, video and audio (NTSC, Range : -40 to +60 dBmV (typical) Resolution Bandwidth : 330 KHz Accuracy : 1.5 dB typical at 25 C (77 F) Modulation Types : QPR, QPSK, QAM (DVB/ACTS) Accuracy : 2.0 dB typical at 25 C (77 F) Sweep Rate : Less than 2 seconds Display Scaling and Range : 5 and 10 dB/division ; 6 vertical Sensitivity : -35 to +60 dBmV (typical) DOCISIS Based : DOCSIS 1.0 and 1.1 Diplexer Crossover (DOCSIS 42/88 MHz (min. downstream modes only) DOCSIS center freq. 91 MHz) Transmitter Output : At 25 C maximum 55 dBmV with Modulation Type : 64 and 256 QAM, ITU-T J.83 Input Range (Lock Range) : -15 to +50 dBmV total integrated BER (Bit Error Rate) : Pre and Post FEC : 10-4 to 10-9 MER (Modulation Error Ratio) : Range 64 QAM : 21 to 35 dB EVM (Error Vector Magnitude) : Range 64 QAM : 1.2% to 5.8% Accuracy : 0.5% (1.2% to 2.0%) Symbol Rate : Annex A, 5.057 to 6.952 Msps for Annex B, 5.057 Msps for 64 QAM RF : 75 ohm, F81 or BNC option Maximum Sustained Voltage : 100V AC RS232 : Standard via DB9 on charger module or optional direct cable Printer Compatibility : Epson and Citizen Ethernet : RJ45, 10 base T, TCP/IP, and USB : v1.1 host mode, 150 mA maximum slave (future firmware release) Shock and vibration : IEC 60068 Water Resistance : MIL-STD-810E DOWN STREAM SPECTRUM : (forward scan) Frequency range : 40 to 1000 MHz Sweep rate : Less than 2.5 seconds Display scaling and range : 5 and 10 dB/division; 6 vertical Resolution bandwidth : 300 kHz Sensitivity : -35 to 60 dBmV (typical) Modulation type : 64 and 256 QAM Constellation points : 2000, 4000, 8000, 16000, 32000, Display : 320 x 240 pixels, gray scale, Language Support : English in all models. No-charge (User interface and second language option of Spanish, Help System) French, German, or Japanese Dimensions : 12 cm (W) 25 cm (H) 8.25 cm (D) ACTERNA WARRENTY OR UNDER ITS CERTIFIED SALES PROGRAM.. ALL SALES ARE FINAL.... PLEASE ASK ANY QUESTIONS BEFORE PURCHASE!THIS IS A THIRD PARTY SALE OR PAWN SALE !!! (Acterna dsam 1000 digital service activation meter was posted and is owned by: Julian Farrell) |
j-farrell@chicagopartsnetwork.com (Julian Farrell) for more information.
