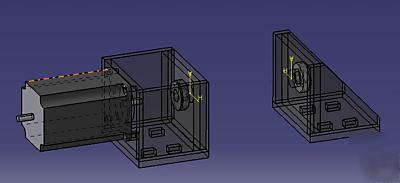

This is a Nema 23 stepper motor and bearing mounting system. Takes standard nema 23 motor and 1/2ID 1.125 OD ball bearings. These can be purchased from VXB. Then you can put in your threaded rod or ball screw and be on your way to a linear stage. These are very stiff and strong pieces machined from PVC. 1/4 and 1/2 inch thick. 4 Bolt holes are on the bottom for attaching to your table. There are also 4 bolt holes on the front faces in case you want to mount it that way. For installing threaded rod, I recommend using a hard rubber washer between the nut and the bearing. Then preloading to about 100lbs.
